NPZ

NPZ

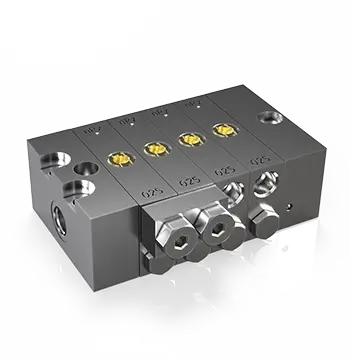

DropsA’s NPZ is an accurate, minimum dosage solution for heavy equipment and trailers. These modular metering dividers use the progressive movement of pistons to distribute small amounts of grease or oil lubricants to multiple points in equipment. The lubrication cycles can be easily controlled with an optional VET ultrasensor, which detects piston movement. For corrosive environments, DropsA manufactures a special AISI 316 version.

Learn more at DropsA.com
Add to quote
SKU: N/A Category:

Description

  • Versatile: One divider can distribute grease lubricant in up to 24 points.
  • Easy to Maintain: Blockages can easily be identified and resolved due to NPZ’s progressive design.
  • Modular: DropsA offers a wide range of accessories and bridge elements that can be integrated into any NPZ model. It’s even possible to mount a grease nipple on the inlet element.
  • Easy to Install: NPZ has a sleek, compact design featuring non-protruding screws to improve ease of assembly and installation.

Additional information

Flow Rate

0.025 to 0.045 to 0.075 to 0.105 to 0.150 to 0.200 cm3
Number of Divider Elements

Minimum: 3
Maximum: 12
Operating Pressure

Up to 300 Bar (4350 PSI)
Operating Temperature

-20 degrees to 80 degrees Celsius/ -4 to 176 degrees Fahrenheit
Strokes Per Minute

Up to 200
Lubricants

Min. Oil 32 cST; max. grease 2 NLGI2
Threaded Connections

M10x1 double cone seat for Ø 4mm and 6 mm tube
