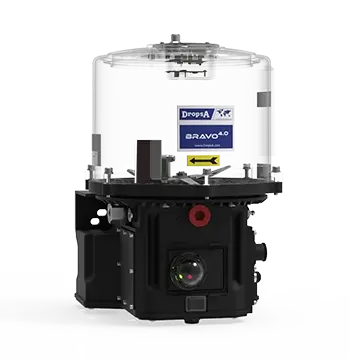

Bravo 4.0

Bravo 4.0

Bravo 4.0 takes our original Bravo design to the next level. This electric pump is engineered for progressive grease and oil lubrication and to be used with a wide array of tanks. Its integrated tank is made from plastic and features fixing holes to reduce the likelihood of lubricant leakage. Compared to our original Bravo model, it can withstand more pressure, contains double-slot fixing holes for greater compatibility, features wiring set-ups on both sides (along with a customizable plate), and allows for continuous level monitoring.

The Bravo 4.0 is available in two macro-versions: manual, managed by PLC and external connectors; and LTC (Lubricate Time Control), managed with a programmable PLC and DIP switch.

Learn more at DropsA.com
Add to quote
SKU: N/A Category:

Description

Bravo 4.0 is a cost-effective solution for a wide range of applications, including earthmoving and agricultural machinery, wind turbines, chains and gears, mining equipment, and woodworking machinery.

Some of its primary benefits include:

  • Easy to Install: The Bravo 4.0 has a compact but robust design that allows it to be easily installed on mobile equipment. For wind turbines, the model can be configured with an upper bracket and an additional lower bracket.
  • Flexible: This model is designed to meet multiple spare-related requirements.
  • Adjustable Flow Rate: The Bravo 4.0 can operate with up to three pumps, if needed.
  • Easy Operation: The LTC version features an optional remote reset button. The tank can also be operated upside down due to its integrated spring and plate disc.
  • Low Maintenance: This model integrates IoT lubricant level monitoring to make maintenance easier than ever.

Additional information

Power Supply Voltage

12V-24V (DC), 110V-230V (AC 50 Hz), 110V-230V (AC 60 Hz)
Number of Outputs

3 Maximum
Maximum Working Pressure

350 Bar/4016 PSI
Tank Capacity

Up to 14 LT/3.7 Gallons (Oil/Grease Versions)
Up to 12 kg/3.17 Gallons (Grease Versions W/Follower Plate)
Grease Consistency

NLGI 000/NLGI2
Oil Viscosity Min

46 CST At Ambient Temp.
Operating Temperature

-25 to 80 degrees Celsius/-13 to 176 degrees Fahrenheit
Storage Temperature

-30 to 90 degrees Celsius/-22 to 194 degrees Fahrenheit
Protection

IP69K (Vers. DIN 72585), IP67 (Vers. M12)
